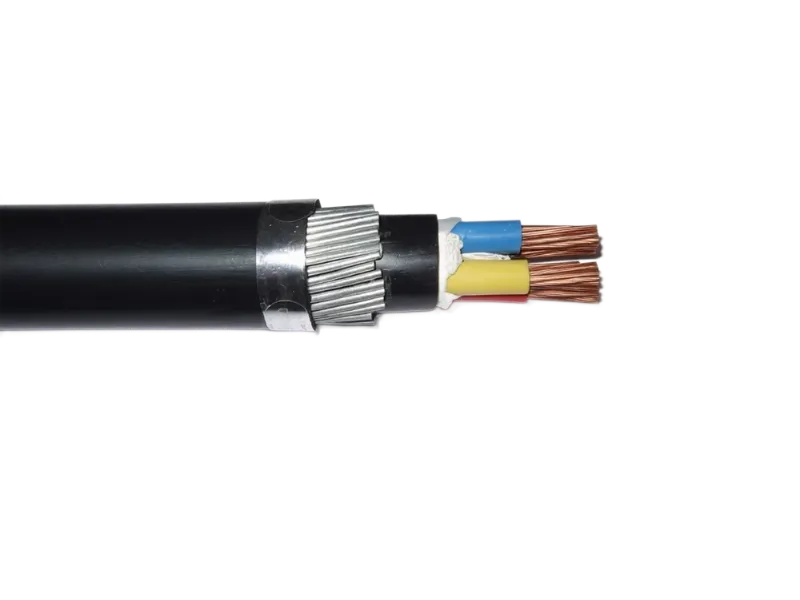

600/1000V PVC Insulated Cable Low Voltage Power Cable to BS 6346

This power cable is designed for electricity supply in low voltage installation systems with a rated voltage of 0.6/1 kV. Manufactured in full compliance with BS 6346, it is well adapted to underground use in industrial applications where chemical and mechanical protections are needed, such as refinery areas and chemical plants.
‌Key Advantages‌
Steel Wire Armour
Chemical Resistant
PVC Insulation & Sheath
Full BS 6346 Compliance

Construction

‌Conductors‌Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
‌Insulation‌PVC (Polyvinyl Chloride) type TI1
‌Armour‌Single Core: AWA (Aluminum Wire Armour)Multi Core: SWA (Steel Wire or Tape Armour)
‌Filler (optional)‌PVC or Polypropylene yarn
‌Binder Tape (optional)‌Polyester (Mylar) tape
‌Inner Sheath / Bedding‌PVC (Polyvinyl Chloride)
‌Outer Sheath‌PVC (Polyvinyl Chloride), type TM1
‌Colour Code‌1 Core: Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers

Technical Information

‌Voltage Rating‌600/1000V
‌Temperature Rating‌-20°C to +60°C
‌Bending Radius‌Single core: 10 × overall diameter  Multicores: 8 × overall diameter
‌Flame Retardant‌IEC 60332 part 1, BS 4066 part 1

Parameters

IEC 6346

Select a standard below to view the corresponding technical data. Our conductors are manufactured and tested in full compliance with international specifications.

Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Bedding thickness Nominal Alum Wire dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox Weight
1x50 19/1.78 1.4 0.8 1.25 1.5 19.1 820
1x70 19/2.14 1.4 0.8 1.25 1.6 21.1 1070
1x95 19/2.52 1.6 0.8 1.25 1.6 23.4 1390
1x120 37/2.03 1.6 1.0 1.6 1.7 26.3 1600
1x150 37/2.25 1.8 1.0 1.6 1.7 28.3 1900
1x185 37/2.52 2.0 1.0 1.6 1.8 30.8 2450
1x240 61/2.25 2.2 1.0 1.6 1.9 34.1 3100
1x300 61/2.52 2.4 1.0 1.6 1.9 37.0 3760
1x400 61/2.85 2.6 1.2 2.0 2.1 42.0 4850
1x500 61/3.20 2.8 1.2 2.0 2.1 45.6 5930
1x630 61/3.65 2.8 1.2 2.0 2.2 49.7 7390
1x800 127/2.85 2.8 1.4 2.5 2.4 55.8 9400
1x1000 127/3.20 3.0 1.4 2.5 2.5 61.0 11430
Nominal
Cross-Sectional Area
Nominal
Insulation Thickness
Nominal
Bedding Thickness
Nominal Aluminium
Wire Armor Dia.
Armour Strip Nominal
Sheath Thickness
Approx. Overall Diameter Approx.
Cable Weight
Thickness Width Wire Armor Strip Armor
mm² mm mm mm mm mm mm mm mm kg/km
1×50 1.4 0.8 1.25 0.6 2.4 1.5 17.8 16.5 530
1×70 1.4 0.8 1.25 0.6 2.4 1.6 19.6 18.3 650
1×95 1.6 0.8 1.25 0.6 2.4 1.6 21.7 20.4 810
1×120 1.6 1 1.6 0.6 2.4 1.7 24.3 22.3 960
1×150 1.8 1 1.6 0.6 2.4 1.7 26.1 24.1 1115
1×185 2 1 1.6 1 3.6 1.8 28.3 27.1 1315
1×240 2.2 1 1.6 1 3.6 1.9 31.2 30 1610
1×300 2.4 1 1.6 1 3.6 1.9 33.7 32.5 1890
Nominal Cross-Sectional Area Number / Wire Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Extruded Bedding Taped Bedding
mm² No./mm mm mm mm mm mm mm kg/km
2×1.5 7/0.53 0.6 0.8 0.9 1.4 12.3 - 270
2×2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 - 350
2×4 7/0.85 0.8 0.8 0.9 1.4 15.1 - 470
2×6 7/1.04 0.8 0.8 0.9 1.5 16.5 - 580
2×10 7/1.35 1.0 0.8 1.25 1.6 20.1 - 840
2×16 7/1.70 1.0 0.8 1.25 1.6 21.9 21.9 990
2×25 7/2.14 1.2 1.0 1.6 1.7 26.7 26.3 1480
2×25* 7/2.14 1.2 1.0 1.6 1.7 23.0 22.6 1480
2×35 19/1.53 1.2 1.0 1.6 1.8 29.2 28.8 1770
2×35* 19/1.53 1.2 1.0 1.6 1.8 24.8 24.4 1770
2×50* 19/1.78 1.4 1.0 1.6 1.9 27.8 27.4 1900
2×70* 19/2.14 1.4 1.0 1.6 1.9 30.4 30.0 2430
2×95* 19/2.52 1.6 1.2 2.0 2.1 35.5 34.7 2970
2×120* 37/2.03 1.6 1.2 2.0 2.2 38.0 37.2 3970
2×150* 37/2.25 1.8 1.2 2.0 2.3 41.3 40.5 4700
2×185* 37/2.52 2.0 1.4 2.5 2.4 46.4 45.2 5990
2×240* 61/2.25 2.2 1.4 2.5 2.5 51.2 50.0 7420
2×300* 61/2.52 2.4 1.6 2.5 2.7 56.4 54.8 8950
2×400* 61/2.85 2.6 1.6 2.5 2.9 61.9 60.3 11030
Nominal Cross-Sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Armour Strip Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Thickness Width Wire Armor Strip Armor
Extruded Bedding Taped Bedding
mm² mm mm mm mm mm mm mm mm mm kg/km
2×16 1 0.8 1.25 0.6 2.4 1.6 20.6 20.6 19.3 795
2×25 1.2 1 1.6 0.6 2.4 1.7 25 24.6 22.6 1170
2×25* 1.2 1 1.6 0.6 2.4 1.7 21.3 20.9 18.9 1170
2×35 1.2 1 1.6 0.6 2.4 1.8 27.2 26.8 24.8 1340
2×35* 1.2 1 1.6 0.6 2.4 1.8 22.9 22.5 20.5 1340
2×50* 1.4 1 1.6 0.6 2.4 1.9 25.5 25.1 23.1 1450
2×70* 1.4 1 1.6 1 3.6 1.9 27.7 27.3 26.1 1560
2×95* 1.6 1.2 2.0 1 3.6 2.1 32.4 31.6 29.6 2200
Nominal Cross-Sectional Area Number / Wire Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Extruded Bedding Taped Bedding
mm² No./mm mm mm mm mm mm mm kg/km
3×1.5 7/0.53 0.6 0.8 0.9 1.4 12.8 - 307
3×2.5 7/0.67 0.7 0.8 0.9 1.4 14.1 - 387
3×4 7/0.85 0.8 0.8 0.9 1.4 15.8 - 493
3×6 7/1.04 0.8 0.8 1.25 1.5 18.0 - 701
3×10 7/1.35 1.0 0.8 1.25 1.6 21.2 - 967
3×16 7/1.70 1.0 0.8 1.25 1.6 23.1 23.1 1219
3×25 7/2.14 1.2 1.0 1.6 1.7 28.2 27.8 1612
3×25* 7/2.14 1.2 1.0 1.6 1.7 25.0 24.6 1612
3×35 19/1.53 1.2 1.0 1.6 1.8 30.8 30.4 1992
3×35* 19/1.53 1.2 1.0 1.6 1.8 27.1 26.7 1992
3×50* 19/1.78 1.4 1.0 1.6 1.9 30.5 30.1 2534
3×70* 19/2.14 1.4 1.2 2.0 2.0 35.0 34.2 3518
3×95* 19/2.52 1.6 1.2 2.0 2.1 39.3 38.5 4510
3×120* 37/2.03 1.6 1.2 2.0 2.2 42.2 41.4 5375
3×150* 37/2.25 1.8 1.4 2.5 2.4 47.5 46.3 6810
3×185* 37/2.52 2.0 1.4 2.5 2.5 51.9 50.7 8190
3×240* 61/2.25 2.2 1.6 2.5 2.6 57.8 56.2 10280
3×300* 61/2.52 2.4 1.6 2.5 2.8 63.2 61.6 12430
3×400* 61/2.85 2.6 1.6 2.5 3.0 69.6 68.0 15400
Nominal Cross-Sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Armour Strip Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Thickness Width Wire Armor Strip Armor
Extruded Bedding Taped Bedding
mm² mm mm mm mm mm mm mm mm mm kg/km
3x16 1 0.8 1.25 0.6 2.4 1.6 21.7 21.7 20.4 925
3x25 1.2 1 1.6 0.6 2.4 1.7 23.9 23.5 21.5 1150
3x25* 1.2 1 1.6 0.6 2.4 1.7 25.8 25.4 23.4 1150
3x35 1.2 1 1.6 0.6 2.4 1.8 26.4 26.0 24.1 1345
3x35* 1.2 1 1.6 0.6 2.4 1.8 28.7 28.3 27.3 1345
3x50* 1.4 1 1.6 1 3.6 1.9 28.9 28.5 26.4 1610
3x70* 1.4 1.2 2 1 3.6 2 33 32.2 30.2 2220
3x95* 1.6 1.2 2 1.4 4.8 2.1 37.1 36.3 35.1 2745
3x120* 1.6 1.2 2 1.4 4.8 2.2 39.7 38.9 37.7 3145
3x150* 1.8 1.4 2.5 1.4 4.8 2.4 44.7 43.5 41.3 4020
3x185* 2 1.4 2.5 1.4 4.8 2.5 48.7 47.5 45.3 4730
3x240* 2.2 1.6 2.5 1.8 6.4 2.6 54.2 52.6 51.2 5820
3x300* 2.4 1.6 2.5 1.8 6.4 2.8 59.2 57.6 56.2 6850
Nominal Cross-Sectional Area Number / Wire Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Extruded Bedding Taped Bedding
mm² No./mm mm mm mm mm mm mm kg/km
4×1.5 7/0.53 0.6 0.8 0.9 1.4 13.5 - 330
4×2.5 7/0.67 0.7 0.8 0.9 1.4 15.0 - 430
4×4 7/0.85 0.8 0.8 1.25 1.5 17.8 - 640
4×6 7/1.04 0.8 0.8 1.25 1.5 19.2 - 770
4×10 7/1.35 1.0 0.8 1.25 1.6 22.8 - 1070
4×16 7/1.70 1.0 1.0 1.6 1.7 26.3 25.9 1550
4×25 7/2.14 1.2 1.0 1.6 1.8 30.7 30.3 2005
4×25* 7/2.14 1.2 1.0 1.6 1.8 27.8 27.4 2005
4×35 19/1.53 1.2 1.0 1.6 1.9 33.7 33.3 2490
4×35* 19/1.53 1.2 1.0 1.6 1.9 30.3 29.9 2490
4×50* 19/1.78 1.4 1.2 2.0 2.0 35.4 34.6 3475
4×70* 19/2.14 1.4 1.2 2.0 2.1 39.2 38.4 4480
4×95* 19/2.52 1.6 1.2 2.0 2.2 43.3 43.5 5710
4×120* 37/2.03 1.6 1.4 2.5 2.4 49.3 48.1 7350
4×150* 37/2.25 1.8 1.4 2.5 2.5 53.6 52.4 8720
4×185* 37/2.52 2.0 1.6 2.5 2.6 59.0 57.4 10540
4×240* 61/2.25 2.2 1.6 2.5 2.8 65.7 64.1 13290
4×300* 61/2.52 2.4 1.6 2.5 3.0 72.0 70.4 16050
4×400* 61/2.85 2.6 1.8 3.15 3.3 81.3 79.3 20950
Nominal Cross-Sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Alum Wire Armor Dia. Armour Strip Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Thickness Width Wire Armor Strip Armor
Extruded Bedding Taped Bedding
mm² mm mm mm mm mm mm mm mm mm kg/km
4×16 1 1 1.6 0.6 2.4 1.7 24.7 24.3 22.3 1125
4×25 1.2 1 1.6 0.6 2.4 1.8 28.7 28.3 26.3 1390
4×25* 1.2 1 1.6 0.6 2.4 1.8 26.3 25.9 23.9 1390
4×35 1.2 1 1.6 0.6 2.4 1.9 31.3 30.9 28.9 1625
4×35* 1.2 1 1.6 0.6 2.4 1.9 28.6 28.2 26.2 1625
4×50* 1.4 1.2 2 1 3.6 2 33.3 32.5 30.5 2240
4×70* 1.4 1.2 2 1 3.6 2.1 36.8 36.0 34 2750
4×95* 1.6 1.2 2 1.4 4.8 2.2 41.5 40.7 39.5 3360
4×120* 1.6 1.4 2.5 1.4 4.8 2.4 46.1 44.9 42.7 4380
4×150* 1.8 1.4 2.5 1.4 4.8 2.5 50.1 48.9 46.7 5000
4×185* 2 1.6 2.5 1.8 6.4 2.6 55.1 53.5 52.1 5960
4×240* 2.2 1.6 2.5 1.8 6.4 2.8 61.2 59.6 58.2 7340
4×300* 2.4 1.6 2.5 1.8 6.4 3 67 65.4 64 8610
Nominal Cross-Sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Phase Neutral Phase Neutral
mm² mm² mm mm mm mm mm mm kg/km
3×10 1×6 1.0 0.8 1.0 1.25 1.8 23.4 1370
3×16 1×10 1.0 1.0 1.0 1.25 1.8 25.0 1620
3×25* 1×16 1.2 1.0 1.0 1.6 1.8 27.8 1900
3×35* 1×16 1.2 1.0 1.0 1.6 1.8 29.5 2300
3×50* 1×25 1.4 1.2 1.0 1.6 1.9 33.1 3050
3×70* 1×35 1.4 1.2 1.2 2.0 2.0 38.0 4130
3×95* 1×50 1.6 1.4 1.2 2.0 2.2 43.7 5370
3×120* 1×70 1.6 1.4 1.4 2.5 2.3 49.0 6840
3×150* 1×70 1.8 1.4 1.4 2.5 2.4 52.0 8040
3×185* 1×95 2.0 1.6 1.4 2.5 2.5 57.2 9760
3×240* 1×120 2.2 1.6 1.6 2.5 2.7 63.7 12210
3×300* 1×150 2.4 1.8 1.6 2.5 2.9 69.8 14840
3×300* 1×185 2.4 2.0 1.6 2.5 2.9 71.8 17730
3×400* 1×185 2.6 2.0 1.8 3.15 3.1 78.6 19090
Nominal Cross-Sectional Area Number / Wire Nominal Insulation Thickness Nominal Bedding Thickness Nominal Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
Extruded Bedding Taped Bedding
mm² No./mm mm mm mm mm mm mm kg/km
5×1.5 7/0.53 0.6 0.8 0.9 1.4 14.3 - 430
5×2.5 7/0.67 0.7 0.8 0.9 1.5 16.3 - 545
5×4 7/0.85 0.8 0.8 1.25 1.5 19.0 - 790
5×6 7/1.04 0.8 0.8 1.25 1.6 20.9 - 880
5×10 7/1.35 1.0 1.0 1.6 1.7 25.8 - 1150
5×16 7/1.70 1.0 1.0 1.6 1.7 28.4 28.0 1670
5×25 7/2.14 1.2 1.0 1.6 1.9 33.5 33.1 2250
5×35 19/1.53 1.2 1.0 1.6 1.9 36.6 36.2 2670
5×50 19/1.78 1.4 1.2 2.0 2.1 43.0 42.2 3590
5×70 19/2.14 1.4 1.2 2.0 2.2 48.1 47.3 4610
No.
Cores
Nominal Cross-Sectional Area Number / Wire Nominal Insulation Thickness Nominal Bedding Thickness Nominal Alum Wire Armor Dia. Nominal Sheath Thickness Approx. Overall Diameter Approx. Cable Weight
mm² No./mm mm mm mm mm mm kg/mm
7 1.5 7/0.53 0.6 0.8 0.9 1.4 15.2 500
10 1.5 7/0.53 0.6 0.8 1.25 1.5 18.6 780
12 1.5 7/0.53 0.6 0.8 1.25 1.5 19.4 830
19 1.5 7/0.53 0.6 0.8 1.25 1.6 22.2 1090
27 1.5 7/0.53 0.6 1.0 1.6 1.7 26.7 1600
37 1.5 7/0.53 0.6 1.0 1.6 1.8 29.2 1940
48 1.5 7/0.53 0.6 1.0 1.6 1.9 32.9 2360
7 2.5 7/0.67 0.7 0.8 1.25 1.5 18.0 750
10 2.5 7/0.67 0.7 0.8 1.6 1.6 21.8 1000
12 2.5 7/0.67 0.7 0.8 1.6 1.6 22.4 1080
19 2.5 7/0.67 0.7 1.0 1.6 1.7 26.6 1640
27 2.5 7/0.67 0.7 1.0 1.6 1.8 30.7 2110
37 2.5 7/0.67 0.7 1.0 1.6 1.9 34.0 2600
48 2.5 7/0.67 0.7 1.2 2.0 2.1 39.5 3520
7 4 7/0.85 0.8 0.8 1.25 1.6 20.5 970
10 4 7/0.85 0.8 1.0 1.6 1.7 26.1 1500
12 4 7/0.85 0.8 1.0 1.6 1.7 26.8 1630
19 4 7/0.85 0.8 1.0 1.6 1.8 30.5 2170
27 4 7/0.85 0.8 1.2 2.0 2.0 37.1 3170
37 4 7/0.85 0.8 1.2 2.0 2.1 40.8 3910
48 4 7/0.85 0.8 1.2 2.0 2.2 46.0 4790

Request the Complete Data Sheet

If you need a specific product catalogue or related standard file, please contact us.

Application

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use inindustrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant…).

From Production to Delivery

From raw material preparation to final shipmen, every stage is caretuly controled to ensure consistent conductor quality, reliable pertormance,and sae delivery. Our roduction,
inspection, packaging, and logistics processes are managed in accordance with applicable standards and project requirements.

cable production line with finished cable being wound onto a reel

Production

Stranded annealed copper conductors are insulated with XLPE, assembled into the required multicore configuration, optionally filled and bound with polyester tape, then covered with the specified black PVC sheath.

Cable and conductor quality inspection and testing

Inspection

Inspection focuses on conductor construction, insulation condition, core identification, sheath integrity, overall diameter, conductor resistance and test-voltage requirements against the approved technical schedule.

Overhead conductors packed on wooden drums for shipment

Packaging

Finished cable is wound on suitable drums according to ordered size, weight and length. Cable ends are protected and drum identification can include cable type, conductor size, core count, length and project reference.

Wooden drums of overhead conductors loaded into shipping container

Shipping

Before shipment, cable drums and technical documents are checked against the order. Inspection records, identification data and requested test documentation can be prepared for the customer.

faq

What is the difference between IEC 60502-1 and BS 5467 cables?

IEC 60502-1 is the international standard for low voltage PVC insulated power cables up to 1kV, while BS 5467 is the British standard for armoured cables. Both standards cover similar cable types for 0.6/1kV applications. Our cables are manufactured to meet IEC 60502-1 requirements and can also be supplied to comply with BS 5467 upon request. The key differences are in dimensional tolerances and specific marking requirements, but the electrical and mechanical performance are essentially equivalent for most installation purposes.

The choice depends on your project requirements:

  • Copper conductors offer higher conductivity, better mechanical strength, smaller diameter for equivalent current rating, superior corrosion resistance, and easier termination. Recommended for industrial applications, smaller cross-sections, and where reliability is critical.
  • Aluminum conductors provide significant cost savings (typically 30-40% material cost reduction), lighter weight for easier installation, and are commonly used for larger cross-sections in utility distribution and construction projects. Note that aluminum requires larger conductor sizes for equivalent ampacity and proper anti-oxidant treatment at terminations.

Steel wire armour (SWA) or steel tape armour (STA) is recommended in the following scenarios:

  • Direct burial in the ground without conduit protection
  • Areas with risk of mechanical damage (construction sites, heavy traffic areas)
  • Underground duct banks where pulling forces may be high
  • Outdoor installations exposed to potential impact or rodent damage
  • Industrial environments with heavy machinery and equipment

Unarmoured cables are suitable for indoor installation in cable trays, conduits, wall chases, and other protected locations where mechanical damage risk is minimal.

Standard burial depth recommendations for SWA armoured cables:

  • General areas (footpaths, grass verges): minimum 600mm (24 inches) below ground level
  • Under roads and driveways: minimum 900mm (36 inches) below ground level
  • Under agricultural land: minimum 1000mm (40 inches)

Cables should be laid on a bed of clean sand or sifted soil, covered with sand, then protected with cable protection tiles or warning tape before backfilling. Always verify local electrical codes and regulations as requirements may vary by region.

Yes, we offer extensive customization options to meet specific project requirements including:

  • Special core configurations (e.g., 3+1E, 3+2E, 4+1E, custom multi-core)
  • Custom outer sheath colors (red, blue, grey, etc. for identification)
  • Special print marking with customer logo, project name, or custom text
  • Low smoke zero halogen (LSZH) versions for special fire safety requirements
  • UV-stabilized formulations for extreme outdoor exposure
  • Oil-resistant and chemical-resistant sheath compounds
  • Custom length drums and packaging

Custom orders typically require MOQ and may have slightly longer lead times. Contact our sales team with your specific requirements for a quote.

Typical production lead times:

  • Standard specifications (common sizes): 7-15 working days after order confirmation
  • Custom specifications or special requirements: 15-25 working days
  • Large volume orders: production schedule confirmed at time of order

We also maintain inventory of fast-moving standard sizes for immediate shipment. Transit time depends on destination port and shipping method. We can ship by sea (most cost-effective for large orders), air (urgent shipments), or rail (for Central Asian destinations).

Request for Free Consultation

Contact Information

Send us your cable requirements and our team will respond quickly with product recommendations, technical support and quotation details.

Explore More

Related Products
Cast Resin T-Joint for Low-Voltage Cable Branching
Gel Straight-Through Cable Joint for Low Voltage Power Cables
Cast Resin Straight-Through Joint for Low Voltage Power Cables
Compatible Hardware
Cast Resin T-Joint for Low-Voltage Cable Branching
Gel Straight-Through Cable Joint for Low Voltage Power Cables
Cast Resin Straight-Through Joint for Low Voltage Power Cables
Knowledge Articles
Customer Visits Our Factory for Product Inspection and Quality Verification
AAAC all aluminium alloy conductor stranded wire
AAAC Conductor Selection Guide: How to Choose the Right AAAC for Overhead Lines
International Airport Expansion Project in Saudi Arabia

For Immediate Assistance, Please Contact us Now!
