Covered Line Wire for Overhead Distribution
Covered line wire is a single overhead conductor with a weather-resistant polymeric covering for insulator-supported distribution. Available metallic conductors include solid 1350-H19 aluminium, stranded AAC, AAAC and ACSR, with PE, HDPE or XLPE covering according to the specified design. It is used on overhead distribution routes, crossings and replacement sections where a covered conductor is required, but it remains an energised line conductor rather than a touch-safe cable.
Product Overview
The metallic conductor and polymeric covering must be selected as one construction. Solid aluminium and AAC provide aluminium-only options, AAAC uses aluminium alloy for a different mechanical balance, and ACSR adds steel reinforcement for higher tensile duty. Covering material and thickness affect finished diameter, surface behaviour and the ties, clamps or connectors used with the conductor.
Covered line wire is normally installed as an individual conductor on insulators. It is not an aerial bundled cable, and its covering does not remove the need for clearances, insulation coordination or safe working procedures. Because the merged product range includes designs governed by different ASTM, ICEA and utility requirements, buyers should specify conductor form, size, covering material, voltage, route conditions and existing line hardware together.
Key Features
- Solid aluminium and AAC options:Solid 1350-H19 aluminium and stranded AAC provide aluminium-only conductor choices for designs whose mechanical duty does not require alloy or steel reinforcement.
- AAAC conductor option:AAAC cores use aluminium alloy to increase mechanical capability while retaining an all-aluminium construction, offering another balance of strength, mass, conductivity and corrosion behaviour.
- ACSR conductor option:ACSR variants place aluminium strands around a steel-reinforced core, providing higher tensile duty for spans or loading conditions that require more mechanical support beneath the covering.
- PE, HDPE and XLPE coverings:PE, HDPE and XLPE coverings are specified by material and thickness; this protective layer changes the finished diameter and surface used by ties, clamps and connection accessories.
Product Applications
- Insulator-supported overhead secondary distribution where a utility specifies a weather-resistant covered conductor rather than bare line wire
- Vegetation-exposed or compact routes where reducing faults from brief incidental contact forms part of the overall network design
- Replacement circuits requiring an established AAC, AAAC or ACSR core with the corresponding PE, HDPE or XLPE covering and fittings
Technical Specifications
Technical data is organised by metallic conductor and covering construction. Solid aluminium, AAC, AAAC and ACSR designs must be selected from the corresponding table because stranding, strength, diameter, mass and covering options differ.
Covered Line Wire — ASTM/ICEA Construction Parameters
| Covered line Wire--Aluminum Conductor | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code Name | Size AWG or kcmil | No.of wires | Insulation Thickness (mm) | Overall Diameter (mm) | Rated Strength (kg) | Nominal Weight (kg/km) | Allowable Ampacity+ A | |||
| Al | LDPE | HDPE | XLPE | |||||||
| AAC | ||||||||||
| Plum | 6 | 7 | 0.762 | 6.198 | 255 | 36.61 | 50.66 | 51.27 | 51.27 | 100 |
| Apricot | 4 | 7 | 0.762 | 7.239 | 400 | 58.19 | 75.57 | 76.33 | 76.33 | 135 |
| Peach | 2 | 7 | 1.143 | 9.703 | 612 | 92.56 | 126.09 | 127.55 | 127.55 | 180 |
| Nectarine | 1 | 7 | 1.143 | 11.481 | 789 | 116.67 | 167.31 | 169.52 | 169.52 | 210 |
| Quince | 1/0 | 7 | 1.524 | 12.395 | 903 | 147.48 | 203.7 | 206.14 | 206.14 | 240 |
| Haw | 1/0 | 19 | 1.524 | 12.522 | 980 | 147.48 | 204.49 | 206.96 | 206.96 | 240 |
| Orange | 2/0 | 7 | 1.524 | 14.834 | 1139 | 186.02 | 257.9 | 261.02 | 261.02 | 280 |
| Ironwood | 2/0 | 19 | 1.524 | 13.691 | 1211 | 186.02 | 250.41 | 253.21 | 253.21 | 280 |
| Fig | 3/0 | 7 | 1.524 | 16.307 | 1377 | 233.64 | 315.53 | 319.08 | 319.08 | 320 |
| Lemon | 3/0 | 19 | 1.524 | 14.986 | 1501 | 233.64 | 306.53 | 309.7 | 309.7 | 320 |
| Olive | 4/0 | 7 | 1.524 | 16.307 | 1728 | 296.14 | 378.04 | 381.58 | 381.58 | 370 |
| Pomegranate | 4/0 | 19 | 1.524 | 16.459 | 1823 | 296.14 | 379.09 | 382.69 | 382.69 | 370 |
| Sassalras | 250 | 19 | 1.524 | 17.628 | 2043 | 348.68 | 439.88 | 443.84 | 443.84 | 420 |
| Mulberry | 266.8 | 19 | 1.524 | 17.653 | 2182 | 372.19 | 463.59 | 467.55 | 467.55 | 460 |
| Basswood | 300 | 19 | 1.524 | 18.999 | 2404 | 419.66 | 520.91 | 525.3 | 525.3 | 478 |
| Anona | 336.4 | 19 | 1.524 | 19.964 | 2697 | 469.51 | 578.04 | 582.75 | 582.75 | 495 |
| Chinquapin | 350 | 19 | 1.524 | 20.269 | 2790 | 488.12 | 598.98 | 603.79 | 603.79 | 525 |
| Molles | 397.5 | 19 | 2.032 | 22.454 | 3123 | 555.08 | 707.29 | 713.88 | 713.88 | 550 |
| Sumac | 450 | 37 | 2.032 | 23.673 | 3719 | 628 | 791.79 | 798.89 | 798.89 | 600 |
| Huckleberry | 477 | 37 | 2.032 | 24.257 | 3810 | 665.21 | 834.63 | 841.98 | 841.98 | 610 |
| ACSR | ||||||||||
| Walnut | 6 | 6/1 | 0.762 | 6.553 | 540 | 36.46 | 69.94 | 71.43 | 71.43 | 105 |
| Butternut | 4 | 6/1 | 0.762 | 7.874 | 844 | 58.04 | 107.15 | 107.15 | 108.64 | 135 |
| Hickory | 4 | 7/1 | 0.762 | 8.052 | 1070 | 58.04 | 120.54 | 122.03 | 123.52 | 135 |
| Pignut | 2 | 6/1 | 1.143 | 10.312 | 1293 | 92.27 | 175.6 | 177.09 | 178.58 | 180 |
| Beech | 2 | 7/1 | 1.143 | 10.643 | 1651 | 92.27 | 199.41 | 199.41 | 202.39 | 180 |
| Chestnut | 1 | 6/1 | 1.143 | 11.303 | 1610 | 116.37 | 217.27 | 218.76 | 220.25 | 210 |
| Almond | 1/0 | 6/1 | 1.524 | 13.157 | 1987 | 146.73 | 282.75 | 284.24 | 287.21 | 235 |
| Pecan | 2/0 | 6/1 | 1.524 | 14.402 | 2404 | 184.98 | 348.23 | 349.72 | 349.72 | 290 |
| Filbert | 3/0 | 6/1 | 1.524 | 15.799 | 3003 | 233.34 | 430.08 | 433.05 | 437.52 | 305 |
| Buckeye | 4/0 | 6/1 | 1.524 | 17.348 | 3787 | 294.21 | 531.27 | 535.74 | 540.2 | 345 |
| Hackberry | 266.8 | 18/1 | 1.524 | 18.517 | 3121 | 372.63 | 525.32 | 528.3 | 534.25 | 356 |
| AAAC | ||||||||||
| Maple | 6 | 7 | 0.762 | 6.553 | 503 | 42.41 | 59.53 | 61.01 | 61.01 | 78 |
| Hornbeam | 4 | 7 | 0.762 | 7.874 | 798 | 67.56 | 89.29 | 90.78 | 92.12 | 145 |
| Linden | 2 | 7 | 1.143 | 10.312 | 1270 | 107.44 | 147.33 | 147.33 | 148.82 | 190 |
| Oilnut | 1/0 | 7 | 1.524 | 11.887 | 2023 | 170.99 | 238.11 | 247.03 | 247.03 | 250 |
| Waterash | 2/0 | 7 | 1.524 | 14.402 | 2445 | 215.63 | 291.68 | 302.01 | 302.01 | 290 |
| Shellbark | 3/0 | 7 | 1.524 | 15.799 | 3080 | 271.59 | 358.65 | 370.55 | 370.55 | 335 |
| Planetree | 4/0 | 7 | 1.524 | 17.348 | 3883 | 342.57 | 443.47 | 456.86 | 456.86 | 385 |
POLY AL. & POLY AAC Conductors — Construction Parameters
| Code Name | Size | Stranding | Insul. Thickness | Approx. Over-all Diameter | Rated Strength | Appox. Cable;Weight | Allowable Ampacity + (Amps )++ |
|---|---|---|---|---|---|---|---|
| AWG/ MCM | No. / mm | mm | mm | kg | Kg / km | A | |
| Apple | 6 | 4.155 | 0.76 | 5.68 | 201.85 | 46.77 | 105 |
| Pear | 4 | 5.189 | 6.71 | 321.15 | 70.38 | 135 | |
| Cherry | 2 | 6.543 | 1.14 | 8.83 | 500.32 | 116.481 | 180 |
| Plum | 6 | 7/1.56 | 0.76 | 6.20 | 229.97 | 51.37 | 105 |
| Apricot | 4 | 7/1.96 | 7.40 | 359.70 | 77.70 | 140 | |
| Peach | 2 | 7/2.47 | 1.14 | 9.70 | 551.12 | 128.44 | 180 |
| Nectarine | 1 | 7/2.78 | 10.63 | 669.51 | 158.22 | 210 | |
| Quince | 1/0 | 7/3.12 | 1.52 | 12.41 | 812.39 | 207.82 | 240 |
| Orange | 2/0 | 7/3.50 | 13.55 | 1 024.68 | 254.11 | 280 | |
| Fig | 3/0 | 7/3.93 | 14.84 | 1 241.05 | 312.21 | 320 | |
| Olive | 4/0 | 7/4.42 | 16.31 | 1 563.56 | 385.81 | 370 | |
| Pomegranate | 4/0 | 19/268 | 16.45 | 1 641.12 | 381.39 | 370 | |
| Mulberry | 266.8 | 19/3.01 | 18.10 | 2 028.95 | 471.12 | 430 | |
| An on a | 336.4 | 19/3.38 | 19.95 | 2510.67 | 583.09 | 495 | |
| Mollies | 397.5 | 19/3.67 | 2.03 | 22.41 | 2 902.58 | 711.60 | 545 |
| Huckleberry | 477.0 | 37/2.88 | 24.22 | 3 547.60 | 833.20 | 610 | |
| Pawpaw | 556.5 | 37/3.12 | 25.90 | 4 075.90 | 965.02 | 670 | |
| Breadfruit | 636.0 | 61/2.59 | 2.41 | 28.14 | 4 723.33 | 1 110.61 | 720 |
| Persimmon | 795.0 | 61/2.90 | 30.67 | 5 837.8 | 1 354.82 | 825 | |
| Grapefruit | 1 033.5 | 61/3.31 | 34.36 | 7470.79 | 1 732.41 | 970 |
POLY ACSR Conductors — Construction Parameters
| Code Name | Size | Stranding No. / mm | Insul. Thick | Approx. Over-all Diameter | Rated Strength | Appox. Cable Weight | Allowable Ampacity + (Amps) ++ | |
|---|---|---|---|---|---|---|---|---|
| AWGZ MCM | Al. | Steel | mm | mm | kg | Kg/km | A | |
| Walnut | 6 | 6 /1.68 | 1.68 | 0.76 | 6.56 | 513.02 | 70.37 | 105 |
| Butternut | 4 | 6/2.12 | 2.12 | 7.88 | 801.51 | 107.36 | 135 | |
| Hickory | 4 | 7/1.96 | 2.61 | 8.01 | 1 016.97 | 126.40 | 135 | |
| Pignut | 2 | 6/2.67 | 2.67 | 1.14 | 10.30 | 1 228.35 | 175.69 | 180 |
| Beech | 2 | 7/2.47 | 3.30 | 10.53 | 1 568.55 | 207.41 | 180 | |
| Chestnut | 1 | 6/3.00 | 3.00 | 11.28 | 1 529.99 | 215.79 | 210 | |
| Almond | 1/0 | 6/3.37 | 3.37 | 1.52 | 13.16 | 1 887.43 | 282.97 | 235 |
| Pecan | 2/0 | 6/3.78 | 3.78 | 14.39 | 2 288.41 | 347.03 | 270 | |
| Filbert | 3/0 | 6/4.25 | 4.25 | 15.80 | 2 852.69 | 429.97 | 305 | |
| Buckeye | 4/0 | 6 /4.77 | 4.77 | 17.36 | 3 598.41 | 532.19 | 345 | |
| Hackberry | 266.8 | 18/3.09 | 3.09 | 18.50 | 2 964.73 | 532.34 | 435 | |
Request the Complete Data Sheet
From Production to Delivery

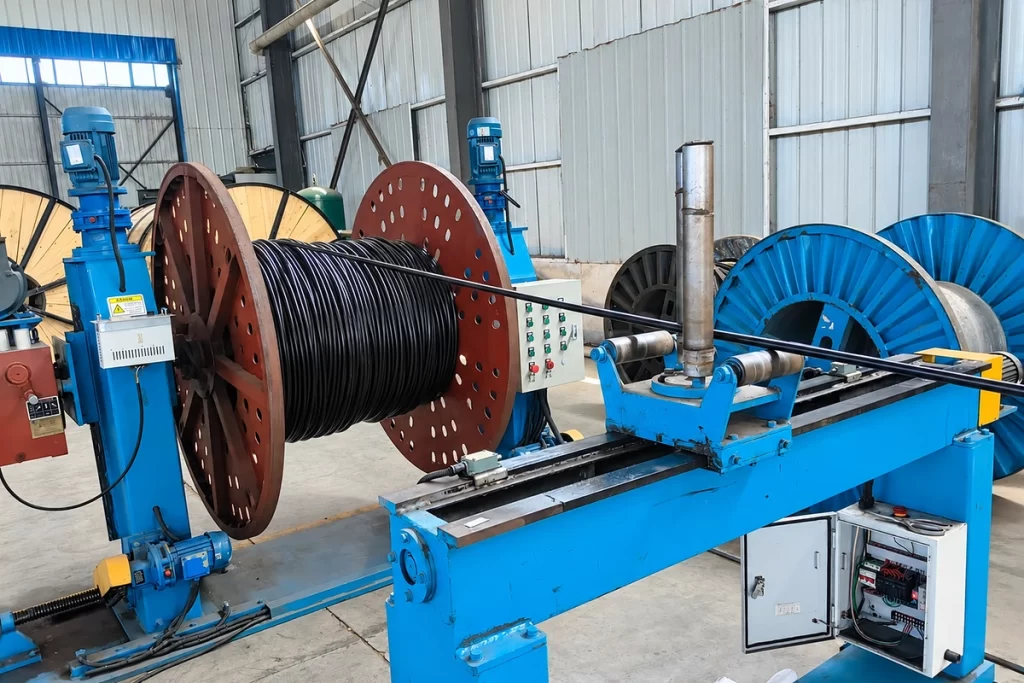

From raw material preparation to final shipmen, every stage is caretuly controled to ensure consistent conductor quality, reliable pertormance,and sae delivery. Our roduction,
inspection, packaging, and logistics processes are managed in accordance with applicable standards and project requirements.
Production
The metallic conductor is formed to the selected design. Solid aluminium uses the specified 1350-H19 wire, while AAC, AAAC and ACSR use their corresponding stranded constructions before the required PE, HDPE or XLPE covering is applied.
Inspection
Inspection checks core material and stranding, conductor resistance where specified, covering material, thickness and surface, overall diameter and the electrical or mechanical tests stated in the purchase schedule.
Packaging
Reels are selected to respect the covered conductor’s bend and handling limits, while end protection and suitable lagging reduce abrasion, crushing and contamination before the line is strung.
Shipping
Drum labels identify conductor family, nominal size, covering material and thickness, manufacturing standard, length and production lot, allowing the customer to separate similar-looking variants during receiving and installation.
Frequently Asked Questions
Is covered line wire safe to touch when it is energised?
It should be treated as an energised overhead conductor, not as a touch-safe insulated cable. We describe the product as covered line wire in our offer and state the relevant construction, helping your safety and engineering teams retain the required clearances, insulators and working procedures.
How is this product different from aerial bundled cable?
Covered line wire is normally one conductor installed on insulators; ABC combines several insulated cores in a bundled support system. If you share the network drawing and voltage, we can direct the enquiry to the correct product family and avoid applying ABC accessories or assumptions to a single covered conductor.
Can you help me choose between AAC, AAAC and ACSR cores?
Provide span, tensile load, sag limits, conductor size, corrosion environment and existing hardware. We can compare the available conductor groups and explain how each core changes mass, strength and fittings, giving your engineer a clearer basis for choosing the conductor beneath the specified covering.
Can PE, HDPE and XLPE coverings be treated as interchangeable?
No. They are separate available constructions and may differ in covering thickness, finished diameter and specified operating basis. The material required by the governing utility specification should be used. We will state the selected polymer, thickness and finished dimensions in the offer so that fittings and handling requirements can be checked against the same construction.
Will my existing bare-conductor fittings work with the covered wire?
Some fittings may need a covered-conductor design because the polymer changes diameter, surface pressure and the connection interface. Send us the existing fitting details and proposed conductor construction, and we can include suitable ties, clamps or connectors for your team’s compatibility assessment.
What details are required for a covered line-wire quotation?
Please send voltage, conductor family and size, stranding, covering material and thickness, standard, route environment, quantity, reel lengths, line fittings and documentation needs. We can then prepare an offer that identifies both the metallic core and covering, rather than quoting a generic weatherproof wire.
