IEC 60502-1 CVVS Screened Control Cable 600V
IEC 60502-1 referenced CVVS Screened Control Cable is a multicore copper control cable with PVC insulation, a 0.1 mm annealed copper-tape overall shield and a black PVC outer sheath. It is intended for control circuits that require electrostatic shielding in underground ducts, conduit and open-air industrial installations.
PRODUCT OVERVIEW

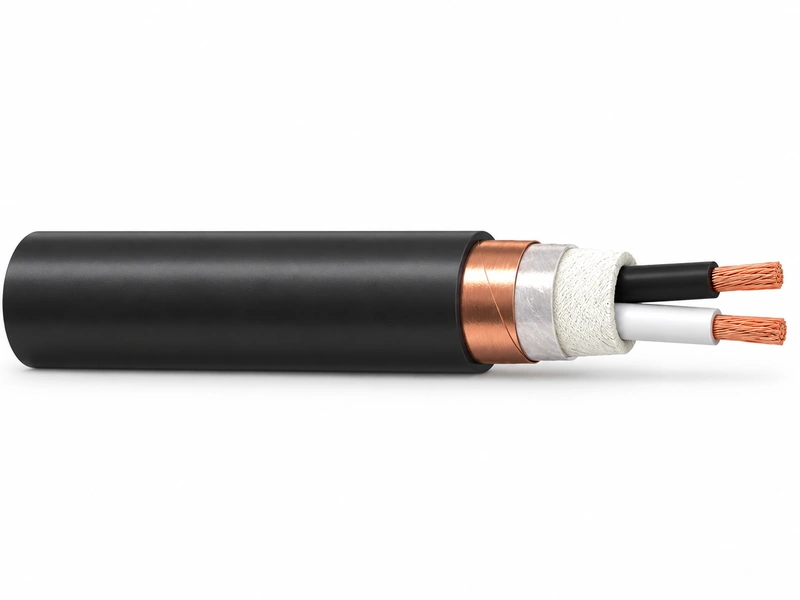

CVVS Screened Control Cable uses stranded annealed copper conductors insulated with polyvinyl chloride (PVC). The insulated cores are assembled with optional non-hygroscopic filler and optional polyester (Mylar) binding tape, wrapped with a 0.1 mm annealed copper-tape shield, and protected by a black PVC outer sheath.
The overall copper-tape screen is the defining construction feature of CVVS. It is used where electrostatic interference can affect control-circuit stability, particularly when multicore control cables are routed in underground ducts, conduit or exposed industrial routes. The listed maximum conductor temperature is 70°C, the circuit voltage is not exceeding 600V, and the test voltage is 3500V.
KEY FEATURES
- Reference Standard: IEC 60502-1.
- Stranded annealed copper conductors.
- PVC insulation.
- 1 mm annealed copper-tape overall shield.
- Black PVC outer sheath.
- Optional special flame-retardant sheath.
- 5-10 mm² conductor range.
- 2-30 cores in the listed range.
- Maximum conductor temperature: 70°C.
- Circuit voltage: not exceeding 600V.
- Test voltage: 3500V.
CABLE CONSTRUCTION
Conductor | Stranded annealed copper wires |
Conductor Size Range | 1.5 mm² to 10 mm² |
Insulation | Polyvinyl chloride (PVC) |
Filler | Non-hygroscopic material, optional |
Binding Tape | Polyester (Mylar) tape, optional |
Shield | Annealed copper tape, 0.1 mm |
Outer Sheath | PVC, black |
Optional Sheath | Special flame-retardant sheath can be supplied |
STANDARD REFERENCE & COMPLIANCE
Item | Details |
Referenced Standard | IEC 60502-1 |
Current Edition | IEC 60502-1:2021 |
Product Rating | Screened control cable for circuits up to 600V |
Compliance Note | IEC 60502-1 is referenced in the product specification. For projects requiring edition-specific compliance, confirm the required voltage designation and test documentation before approval. |
IEC 60502-1 is used here as the reference standard stated for the CVVS product family. Projects may call for a specific edition, voltage designation or approval package, so customers requiring formal edition-specific compliance should state those requirements during technical review or quotation.
IEC 60502-1 RELATED DESIGN FEATURES
Design Feature | Product Data |
Conductor | Stranded annealed copper wires |
Insulation | PVC |
Overall Shield | Annealed copper tape, 0.1 mm |
Maximum Conductor Temperature | 70°C |
Outer Sheath | Black PVC |
Test Voltage | 3500V |
Conductor Resistance | Maximum conductor resistance at 20°C listed by conductor size |
Dimensional Control | Conductor diameter, insulation thickness, sheath thickness and overall cable diameter listed by construction |
WHY CVVS USES AN OVERALL COPPER-TAPE SHIELD
CVVS is selected when a control circuit needs an overall metallic screen to reduce the effect of electrostatic interference from nearby power cables, switching equipment or other electrical sources. The annealed copper tape surrounds the multicore assembly and creates a defined shielding layer beneath the PVC outer sheath.
The shield does not replace correct EMC and grounding design. Its termination method should be coordinated with the control-system grounding philosophy, equipment design and project requirements.
PRODUCT APPLICATIONS
- Control circuits requiring electrostatic shielding.
- Underground duct installations.
- Conduit installations.
- Open-air industrial control wiring.
- Supervisory and station-control circuits requiring a screened multicore cable.
- Control-panel and field-control circuits routed near electrically noisy equipment.
| Cores | Area (mm²) | No. & Dia. of Wires | Conductor Dia. mm | Insul. mm | Sheath mm | Overall Dia. mm | Max. R @20°C Ω/km | Weight kg/km |
|---|---|---|---|---|---|---|---|---|
| 2 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 11.4 | 12.1 | 178 |
| 2 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 12.3 | 7.41 | 213 |
| 2 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 14.2 | 4.61 | 287 |
| 2 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 15.4 | 3.08 | 350 |
| 2 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 16.9 | 1.83 | 413 |
| 3 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 11.9 | 12.1 | 209 |
| 3 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 12.9 | 7.41 | 254 |
| 3 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 15.0 | 4.61 | 351 |
| 3 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 16.2 | 3.08 | 435 |
| 3 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 17.9 | 1.83 | 537 |
| 4 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 12.8 | 12.1 | 247 |
| 4 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 13.9 | 7.41 | 305 |
| 4 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 16.2 | 4.61 | 425 |
| 4 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 17.6 | 3.08 | 533 |
| 4 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 19.5 | 1.83 | 675 |
| 5 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 13.8 | 12.1 | 287 |
| 5 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 15.0 | 7.41 | 357 |
| 5 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 17.3 | 4.61 | 500 |
| 5 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 19.2 | 3.08 | 636 |
| 5 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 21.4 | 1.83 | 820 |
| 6 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 328 |
| 6 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 412 |
| 6 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 586 |
| 6 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 744 |
| 6 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 968 |
| 7 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 349 |
| 7 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 442 |
| 7 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 633 |
| 7 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 810 |
| 7 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 1072 |
| 8 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 15.8 | 12.1 | 392 |
| 8 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 17.3 | 7.41 | 498 |
| 8 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 20.5 | 4.61 | 718 |
| 8 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 21.7 | 3.08 | 919 |
| 8 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 24.5 | 1.83 | 1224 |
| 10 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 18.2 | 12.1 | 488 |
| 10 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 19.9 | 7.41 | 622 |
| 10 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 23.8 | 4.61 | 902 |
| 10 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 22.4 | 3.08 | 1159 |
| 10 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 29.6 | 1.83 | 1552 |
| 12 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 18.7 | 12.1 | 542 |
| 12 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 697 |
| 12 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 24.6 | 4.61 | 1018 |
| 12 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 27.0 | 3.08 | 1316 |
| 12 | 10 | 7/1.35 | 4.05 | 1.0 | 1.8 | 30.5 | 1.83 | 1789 |
| 15 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 20.0 | 12.1 | 637 |
| 15 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 22.1 | 7.41 | 827 |
| 15 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 26.4 | 4.61 | 1216 |
| 15 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 29.1 | 3.08 | 1582 |
| 20 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 22.1 | 12.1 | 796 |
| 20 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 24.5 | 7.41 | 1041 |
| 20 | 4 | 7/0.85 | 2.55 | 1.0 | 1.8 | 29.5 | 4.61 | 1547 |
| 20 | 6 | 7/1.04 | 3.12 | 1.0 | 1.8 | 32.5 | 3.08 | 2026 |
| 30 | 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 26.3 | 12.1 | 1122 |
| 30 | 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 28.2 | 7.41 | 1482 |
| 30 | 4 | 7/0.85 | 2.55 | 1.0 | 1.9 | 35.6 | 4.61 | 2244 |
Request the Complete Data Sheet
From Production to Delivery
From raw material preparation to final shipmen, every stage is caretuly controled to ensure consistent conductor quality, reliable pertormance,and sae delivery. Our roduction,
inspection, packaging, and logistics processes are managed in accordance with applicable standards and project requirements.
Production
Stranded annealed copper conductors are insulated with PVC, assembled into the required multicore configuration, optionally filled and bound with polyester tape, wrapped with the specified 0.1 mm annealed copper-tape shield, then covered with the black PVC sheath.
Inspection
Inspection focuses on conductor construction, PVC insulation, core identification, copper-tape screen continuity and coverage, sheath integrity, overall diameter, conductor resistance and test-voltage requirements.
Packaging
Finished cable is wound on suitable drums according to ordered size, weight and length. Cable ends are protected and drum identification can include cable type, conductor size, core count, length and project reference.
Shipping
Before shipment, cable drums and technical documents are checked against the order. Inspection records, product identification and requested test documents can be prepared for project approval.
Frequently Asked Questions
When should I choose CVVS instead of an unshielded PVC control cable?
Choose CVVS when the control circuit is exposed to electrostatic interference and the project calls for an overall metallic screen. The 0.1 mm annealed copper tape adds a dedicated shielding layer around the multicore assembly. If the route is electrically quiet and screening is not required, an unshielded PVC control cable may be simpler and more economical.
How is CVVS different from CCVS?
Both products use an overall annealed copper-tape shield, but their insulation systems are different. CVVS uses PVC insulation and the listed maximum conductor temperature is 70°C, while the CCVS product family uses XLPE insulation and a higher listed conductor-temperature capability. The project specification, temperature requirement and cable construction should determine which one is appropriate.
Can CVVS be installed in underground ducts or conduit?
Yes. Underground duct, conduit and open-air installations are specifically listed as intended applications. For an actual project, the selected cable diameter should still be checked against conduit size, pulling space, bend conditions and termination dimensions.
How should the copper-tape shield be grounded?
The product provides a continuous overall copper-tape screen, but the brochure does not prescribe one universal grounding method. Shield termination should follow the project EMC and grounding philosophy, connected equipment and local installation practice. This should be confirmed during engineering rather than assumed during cable selection.
What should I confirm when a project specifies IEC 60502-1?
Confirm the exact IEC edition, required voltage designation and the test or approval documents expected by the customer. The product data references IEC 60502-1 and states a circuit voltage not exceeding 600V, so edition-specific compliance should be confirmed with the manufacturer before formal approval.
