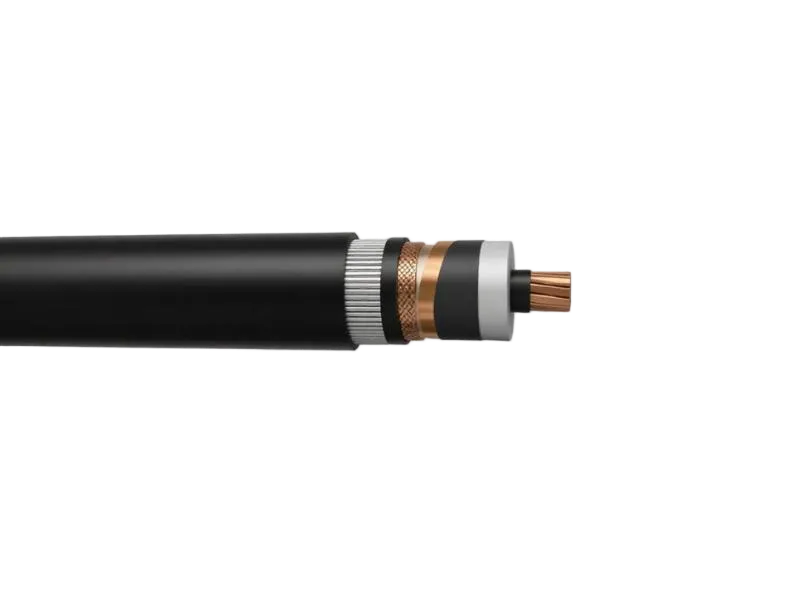

Single Core Medium Voltage Cable to BS 6622/BS 7835

This single core medium voltage cable is designed for distribution of electrical power with nominal voltages ranging from 3.8/6.6kV to 19/33kV at 50Hz. Manufactured with XLPE GP8 or EPR GP7 insulation and extruded semi-conducting conductor screens in full compliance with BS 6622 and BS 7835 (LSZH Version), it is suitable for installation in power supply stations, indoor cable ducts, outdoor trays, underground routes, submerged applications and industrial switchboards.
‌Key Advantages‌
LSZH Low Smoke Zero Halogen Sheath
Extruded Semi-Conducting Conductor Screen
Optional Aluminium Wire Armour
BS 6622 & BS 7835 British Standard

Construction

‌Conductor‌Plain annealed copper or aluminium complying with IEC 60228/BS 6360. Copper conductors shall be stranded (class 2) and aluminium conductors shall be either solid or stranded (class 2).
‌Insulation‌Insulation is of cross-linked polyethylene compound XLPE (GP8) conforming to BS 7655-1.3 or EPR (GP7), conforming to BS 7655-1.2.
‌Conductor Screen‌Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely. The minimum thickness is 0.3mm and the maximum resistivity shall not exceed 500 Ohm-m at 90°C.
‌Insulation Screen‌Extruded layer of semi-conducting cross-linkable compound is applied over the insulation. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating. As an option, a semi-conducting tape may be applied over the extruded semi-conducting layer as a bedding for the metallic layer. The minimum thickness is 0.3 mm and the maximum resistivity is 500 Ohm-m at 90°C. The screen is tightly fitted to the insulation to exclude all air voids and can be easily hand stripped on site.
‌Metallic Layer‌The metallic layer shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires. The metallic layer provides an earth fault current path, capable of withstanding fault current to earth of 1000A for one second at maximum temperature 160°C. Copper wires are applied over the conducting water blocking layer with a minimum diameter of 0.5mm. And over the copper wires, copper tape with minimum thickness of 0.1mm can be applied helically with overlap. Total cross section of copper wire screen layer is shown in table 2.
‌Separation Sheath (for armored cable)‌The separation sheath comprises a layer of extruded PVC, PE or LSZH. The nominal thickness is calculated by 0.02Du + 0.6mm where Du is the fictitious diameter under the sheath in mm. The nominal separation sheath thickness shall not be less than 1.2mm.
‌Armour (for armored cable)‌The armour consists of round aluminium wire with diameter specified as in Table 3.
‌Over Sheath‌Overall sheath comprises a layer of extruded either PVC type 9 conforming to BS 7665-4.2 or MDPE type TS2 conforming to BS 7655-10.1. LSZH can be offered as an option. The over sheath is normally black in colour. When a DC voltage test is to be performed on the over sheath, a semi-conducting layer such as graphite coating shall be applied over the surface of the extruded over sheath. The nominal over sheath thickness is calculated by 0.035+D where D is the diameter immediately under the over sheath in mm. For cables with the over sheath not applied over the armour, the nominal over sheath thickness shall not be less than 1.4mm. And for cables with over sheath applied over the armour, the nominal over sheath thickness shall not be less than 1.8mm.
‌Physical Properties‌Operating Temperature: up to 90°C Temperature Range: -5°C (PVC or LSZH sheath); -20°C (PE sheath)  Short Circuit Temperature: 250°C (short circuit duration up to 5 seconds) Bending Radius: 12 × OD

Parameters

Nom. Cross-Section Area Unarmoured Cables Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL CU AL
mm² mm mm² mm mm kg/km mm² mm mm mm mm kg/km
25 2.5 16 1.5 20.3 750 580 3.4 1.2 1.6 1.8 26.3 1150 1000
35 2.5 16 1.6 21.3 870 650 3.6 1.2 1.6 1.8 27.3 1250 1050
50 2.5 16 1.6 22.4 1090 770 3.9 1.2 1.6 1.8 28.4 1500 1190
70 2.5 16 1.7 24.2 1310 870 4.3 1.2 1.6 1.8 30.0 1740 1300
95 2.5 16 1.7 25.8 1560 960 4.7 1.2 1.6 1.9 31.8 2030 1430
120 2.5 16 1.8 27.4 1830 1070 5.0 1.2 1.6 1.9 33.2 2310 1550
150 2.5 25 1.8 29.1 2130 1190 5.3 1.2 1.6 2.0 35.1 2660 1720
185 2.5 25 1.9 30.8 2490 1320 5.8 1.2 2.0 2.0 37.4 3120 1950
240 2.6 25 1.9 33.5 3040 1520 6.3 1.2 2.0 2.1 40.3 3740 2200
300 2.8 25 2.0 36.1 3650 1770 7.0 1.2 2.0 2.2 42.9 4400 2520
400 3.0 35 2.2 40.6 4680 2170 7.7 1.2 2.0 2.3 47.2 5490 2960
500 3.2 35 2.3 43.6 5670 2570 8.5 1.3 2.5 2.5 51.6 6760 3660
630 3.2 35 2.4 48.8 6980 2990 9.5 1.4 2.5 2.6 57.0 8200 4160
Nom. Cross-Section Area Unarmoured Cables Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL CU AL
mm² mm mm² mm mm kg/km mm² mm mm mm mm kg/km
25 3.4 16 1.5 22.1 960 740 3.8 1.2 1.6 1.8 28.1 1300 780
35 3.4 16 1.6 23.3 1060 790 4.1 1.2 1.6 1.8 29.1 1400 1180
50 3.4 16 1.7 24.4 1160 840 4.4 1.2 1.6 1.8 30.2 1600 1280
70 3.4 16 1.7 26.0 1370 930 4.7 1.2 1.6 1.9 32.0 1840 1400
95 3.4 16 1.8 27.8 1640 1040 5.2 1.2 1.6 1.9 33.6 2130 1530
120 3.4 16 1.8 29.2 1900 1140 5.5 1.2 1.6 2.0 35.2 2430 1670
150 3.4 25 1.9 31.1 2220 1280 5.8 1.2 1.6 2.1 37.9 2870 1930
185 3.4 25 1.9 32.6 2570 1410 6.2 1.2 2.0 2.1 39.4 3240 2080
240 3.4 25 2.0 35.3 3130 1610 6.8 1.2 2.0 2.2 42.1 3490 2330
300 3.4 25 2.1 37.5 3730 1850 7.3 1.2 2.0 2.2 44.1 4490 2560
400 3.4 35 2.2 41.4 4730 2200 8.0 1.2 2.0 2.4 48.2 5589 3040
500 3.4 35 2.3 44.0 5700 2600 8.6 1.3 2.5 2.5 52.0 6780 3680
630 3.4 35 2.4 49.2 7010 3020 9.5 1.4 2.5 2.6 57.4 8230 4200
Nom. Cross-Section Area Unarmoured Cables Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL CU AL
mm² mm mm² mm mm kg/km mm² mm mm mm mm kg/km
25 4.5 16 1.6 23.7 940 820 4.4 1.2 1.6 1.8 30.3 1430 1210
35 4.5 16 1.7 24.9 1140 870 4.7 1.2 1.6 1.9 31.5 1630 1310
50 4.5 16 1.7 26.6 1240 920 4.9 1.2 1.6 1.9 32.6 1730 1410
70 4.5 16 1.8 28.4 1470 1030 5.3 1.2 1.6 1.9 34.2 1970 1520
95 4.5 16 1.9 30.2 1750 1160 5.7 1.2 2.0 2.0 36.8 2370 1770
120 4.5 16 1.9 31.6 2100 1250 6.1 1.2 2.0 2.1 38.4 2670 1910
150 4.5 25 2.0 33.5 2340 1400 6.4 1.2 2.0 2.1 40.1 3020 2080
185 4.5 25 2.0 35.0 2690 1520 6.8 1.2 2.0 2.2 41.8 3420 2240
240 4.5 25 2.1 36.8 3270 1740 7.4 1.2 2.0 2.3 44.5 4050 2500
300 4.5 25 2.2 39.9 3870 1990 7.9 1.2 2.0 2.3 46.5 4680 2780
400 4.5 35 2.3 43.8 4890 2370 8.5 1.3 2.5 2.5 51.8 5970 3430
500 4.5 35 2.4 46.4 5860 2760 9.2 1.3 2.5 2.6 54.4 7010 3910
630 4.5 35 2.5 51.6 7190 3190 10.0 1.4 2.5 2.7 59.8 8480 4420
Nom. Cross-Section Area Unarmoured Cables Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL CU AL
mm² mm mm² mm mm kg/km mm² mm mm mm mm kg/km
35 5.5 16 1.7 27.4 1100 800 5.2 1.2 1.6 1.9 31.4 1400 1200
50 5.5 16 1.8 28.8 1330 1010 5.4 1.2 1.6 2.0 34.8 1850 1540
70 5.5 16 1.9 30.6 1570 1130 5.9 1.2 2.0 2.0 37.2 2190 1750
95 5.5 16 1.9 32.2 1840 1240 6.2 1.2 2.0 2.1 39.0 2510 1900
120 5.5 16 2.0 33.8 2120 1360 6.6 1.2 2.0 2.1 40.4 2810 2040
150 5.5 25 2.0 35.5 2440 1500 6.9 1.2 2.0 2.2 42.3 3180 2240
185 5.5 25 2.1 37.2 2810 1640 7.4 1.2 2.0 2.2 43.8 3560 2380
240 5.5 25 2.2 39.9 3390 1860 7.8 1.2 2.0 2.3 46.5 4200 2640
300 5.5 25 2.2 41.9 3990 2110 8.4 1.3 2.5 2.4 49.9 5030 3130
400 5.5 35 2.3 45.8 5100 2490 9.0 1.3 2.5 2.5 53.8 6140 3600
500 5.5 35 2.4 48.4 6000 2900 9.7 1.4 2.5 2.6 56.6 7210 4100
630 5.5 35 2.5 53.6 7340 3340 10.4 1.4 2.5 2.8 62.0 8700 4650
Nom. Cross-Section Area Unarmoured Cables Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL CU AL
mm² mm mm² mm mm kg/km mm² mm mm mm mm kg/km
50 8.0 16 2.0 34.2 1580 1270 6.7 1.2 2.0 2.2 41.0 2300 1980
70 8.0 16 2.0 35.8 1820 1380 7.1 1.2 2.0 2.2 42.6 2560 2120
95 8.0 16 2.1 37.6 2120 1510 7.5 1.2 2.0 2.3 44.4 2890 2290
120 8.0 16 2.1 39.0 2400 1630 7.9 1.2 2.0 2.3 45.8 3200 2430
150 8.0 25 2.2 40.9 2740 1810 8.2 1.3 2.5 2.4 48.9 3760 2830
185 8.0 25 2.2 42.4 3110 1950 8.6 1.3 2.5 2.5 50.6 4180 3010
240 8.0 25 2.3 45.1 3720 2180 9.2 1.3 2.5 2.5 53.1 4830 3270
300 8.0 25 2.4 47.3 4350 2460 9.7 1.4 2.5 2.6 55.5 5540 3630
400 8.0 35 2.5 51.2 5410 2880 10.3 1.4 2.5 2.7 59.4 6680 4130
500 8.0 35 2.6 53.8 6420 3320 11.0 1.5 2.5 2.8 62.2 7790 4690
630 8.0 35 2.7 59.0 7800 3780 11.8 1.5 2.5 2.9 67.4 9290 5220

Request the Complete Data Sheet

If you need a specific product catalogue or related standard file, please contact us.

Application

They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as forinstallation on cable trays for industries, switchboards and power stations

From Production to Delivery

From raw material preparation to final shipmen, every stage is caretuly controled to ensure consistent conductor quality, reliable pertormance,and sae delivery. Our roduction,
inspection, packaging, and logistics processes are managed in accordance with applicable standards and project requirements.

cable production line with finished cable being wound onto a reel

Production

Stranded annealed copper conductors are insulated with XLPE, assembled into the required multicore configuration, optionally filled and bound with polyester tape, then covered with the specified black PVC sheath.

Cable and conductor quality inspection and testing

Inspection

Inspection focuses on conductor construction, insulation condition, core identification, sheath integrity, overall diameter, conductor resistance and test-voltage requirements against the approved technical schedule.

Overhead conductors packed on wooden drums for shipment

Packaging

Finished cable is wound on suitable drums according to ordered size, weight and length. Cable ends are protected and drum identification can include cable type, conductor size, core count, length and project reference.

Wooden drums of overhead conductors loaded into shipping container

Shipping

Before shipment, cable drums and technical documents are checked against the order. Inspection records, identification data and requested test documentation can be prepared for the customer.

faq

What is the voltage range of these single core medium voltage cables?‌

These single core cables are designed for distribution of electrical power with a nominal voltage Uo/U ranging from ‌3.8/6.6KV to 19/33KV, at a frequency of 50Hz.

Three insulation types are offered:
‌PVC (Polyvinyl Chloride)‌ — for 1.8/3kV and 3.6/6kV cables, a cost-effective and reliable option
‌XLPE (Cross-Linked Polyethylene)‌ — high temperature rating (90°C), superior electrical performance and current-carrying capacity
‌EPR/HEPR (Ethylene Propylene Rubber)‌ — excellent flexibility, cold resistance, and mechanical resilience

Single core cables carry alternating current, which would induce eddy currents in steel armour, causing overheating and energy loss. ‌Aluminium Wire Armour (AWA)‌ is non-magnetic, eliminating these issues while still providing the mechanical protection needed for direct burial and harsh installation conditions. Armour is available as an ‌optional feature‌.

Single core cables are typically preferred for:
High-current circuits where individual phase installation is required
Single-phase systems
Applications requiring easier cable pulling and installation
Circuits where individual phase replacement or maintenance may be needed
Large conductor sizes where three-core construction becomes impractical

Yes, we offer extensive customization options to meet specific project requirements including:

  • Special core configurations (e.g., 3+1E, 3+2E, 4+1E, custom multi-core)
  • Custom outer sheath colors (red, blue, grey, etc. for identification)
  • Special print marking with customer logo, project name, or custom text
  • Low smoke zero halogen (LSZH) versions for special fire safety requirements
  • UV-stabilized formulations for extreme outdoor exposure
  • Oil-resistant and chemical-resistant sheath compounds
  • Custom length drums and packaging

Custom orders typically require MOQ and may have slightly longer lead times. Contact our sales team with your specific requirements for a quote.

Typical production lead times:

  • Standard specifications (common sizes): 7-15 working days after order confirmation
  • Custom specifications or special requirements: 15-25 working days
  • Large volume orders: production schedule confirmed at time of order

We also maintain inventory of fast-moving standard sizes for immediate shipment. Transit time depends on destination port and shipping method. We can ship by sea (most cost-effective for large orders), air (urgent shipments), or rail (for Central Asian destinations).
